• High Abrasion Rubber For Lining in mining Equipment









It is made from high quality natural rubber with very good wear and impact resistant. The rubber sheeting for the mining and quarrying industries and other purposes features   high rebounding, high tensile and high tear strength, resistance to cutting.

It will help solve abrasion wear problems, mechanical impact damages, erosion or corrosion. Widely used as lining in the mining facilities to handle with aggressive materials.

Thanks to the durable performance it brings very good comprehensive rewards to mining industry.

Applications:   Pipe Lining, Chute Lining, Tank Lining, Belting

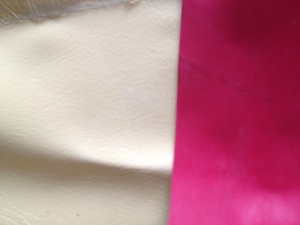

• CN BONDING LAYER WEAR RESISTANT NATURAL RUBBER SHEET

CN BONDING LAYER WEAR RESISTANT NATURAL RUBBER SHEET

Introduction. Rubber to metal bonding is the process of combining rubber and metal to form a strong and long-lasting connection. It is widely utilised in a variety of sectors, including automotive, aerospace, and construction. Rubber-to-metal bonded items may be found in a wide range of applications, from automobiles and aeroplanes to buildings and bridges.

We are excited to announce the launch of our latest innovation, the CN Bonding Layer Rubber. Developed with advanced technology and designed to meet the highest industry standards, this new product offers superior adhesion and durability, making it an excellent choice for applications requiring strong bonding.

• Sandwich rubber

Product description:

Sandwich Rubber Sheet is multi-layer rubber sheet especially designed for mining industry. Its top and bottom layer are high resistant to abrasion and cut for handling mining materials and its inner layer gives support to handle mining material smoothly.

Sandwich Rubber Sheet
Features	Superior resistant to dry abrasion and high impact. Excellent resistant to cut and gouge properties when sharp, heavy coarse particles present. Unique two colors abrasion resistance compound enables handling mining material smoothly and inner layer supports to handle mining material.
Applications	Lining of chutes, vessels, transfer points, vibratory feeders, impact chutes, distribution bins and sumps when critical wear monitoring is required.
Finish Type	Both side smooth finish
Standard Thickness	3 mm to 40 mm
Standard Length	33 FT, 50FT
Standard Width	2 / 1.4 / 1.5 Mtr, 48" / 54" /   60" inches
Color	Black-Red-Black; Black-Green-Black

Technical Specification:

Code	Specific Gravity	Hardnes (+/- 5)	Tensile Strength	Elongation	Temperature
	g/cm3	Shore A	Mpa	%	°C
	1.3	60-40-60	15	500	-25 to +70










• Skirtboard, Pulley Laggings

Pulley Laggings, with specially developed rubber materials and their patterned surfaces have proved to be very effective in water shedding, preventing material build up and controlling belt slippage. This rubber Pulley laggings also can be produced with CN bonding layers to support fast and easy installtion.

Rubber Strip Lagging :

Diamond Pattern Lagging : Ideal for small diameter pulleys on systems with black conveyor belt. It prevents belt from slippage (in particular when water is present) and increase the drive traction of the pulley.   it also deflects water into lateral or diamond shaped grooves, away from pulleys.

Skirt board rubber sheeting:   a side plate to protect conveyor chains and increase the capacity of a conveyor or catch spillage or redirect it to the conveyor belt.

This product is designed for use as belt wiper or conveyor skirtboard. Skirtboard is ideal for mounting pad, flapping, sealing strips, or general construction and industrial use where abrasion resistance is imperative. It is available in all dimensions as per client's specifications.

Skirtboard also makes a great snowplow rubber cutting edge and snowplow blades are flexible and elastic, therefore absorb impact, shock, and conform easily to the road surface. Skirtboard will reduce damage to the plow surface, making it the ideal choice for use on residential concrete, parking garages, brick, cobblestone, pavers, or any other uneven surface.

we had been supplying USA, Canada, South Africa and Australia of skirt board rubber for many years.
